  • Description







     4-1





Type Order code Name of assorted fitting Silicon rubber sheath Remarks
Sheath Type Connection form Lead number x its sperification Applicable trans-former capacity

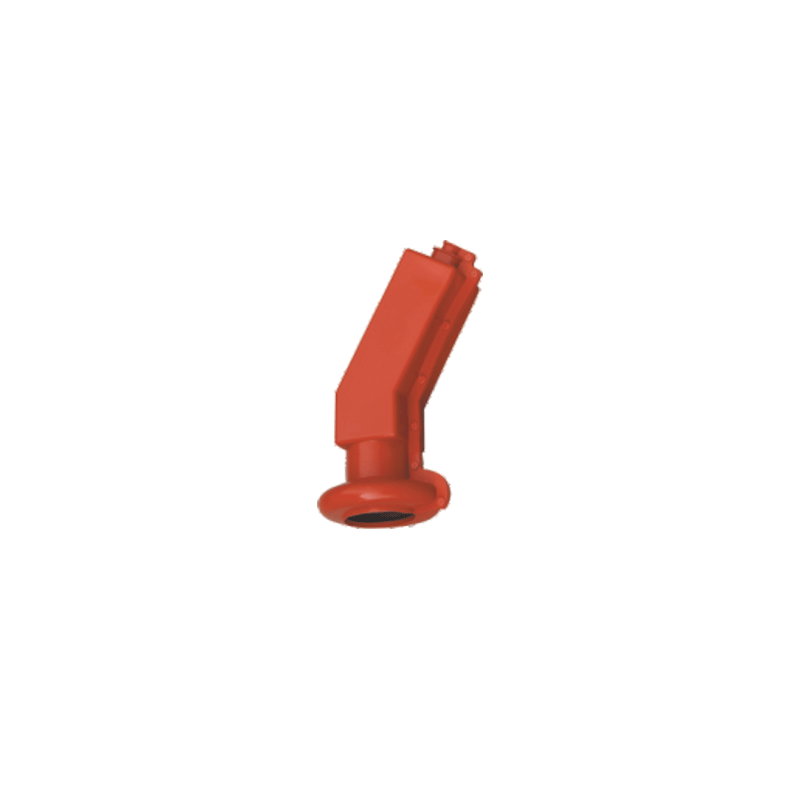

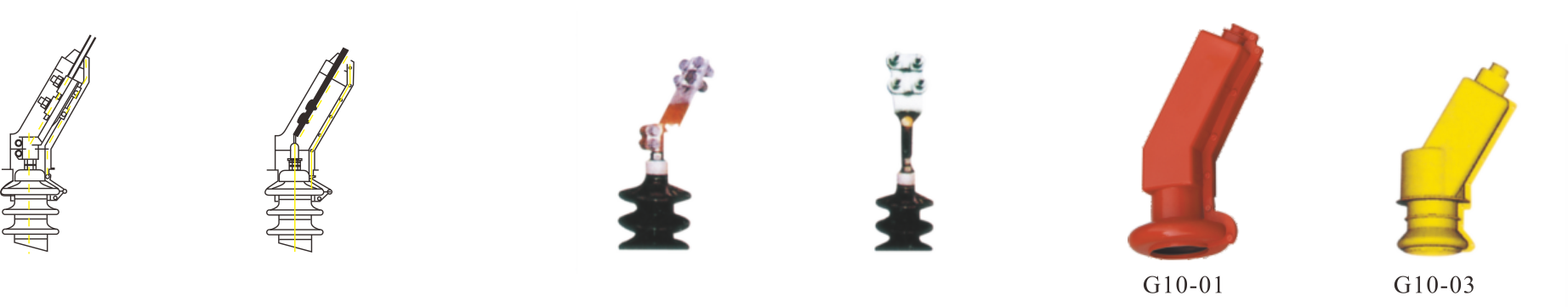

High voltage outlet G10-01 M16 and below oil transformer clamp FT10-BB Diagonal 1 X 16²~120² 20~500kVA Silicon rubber

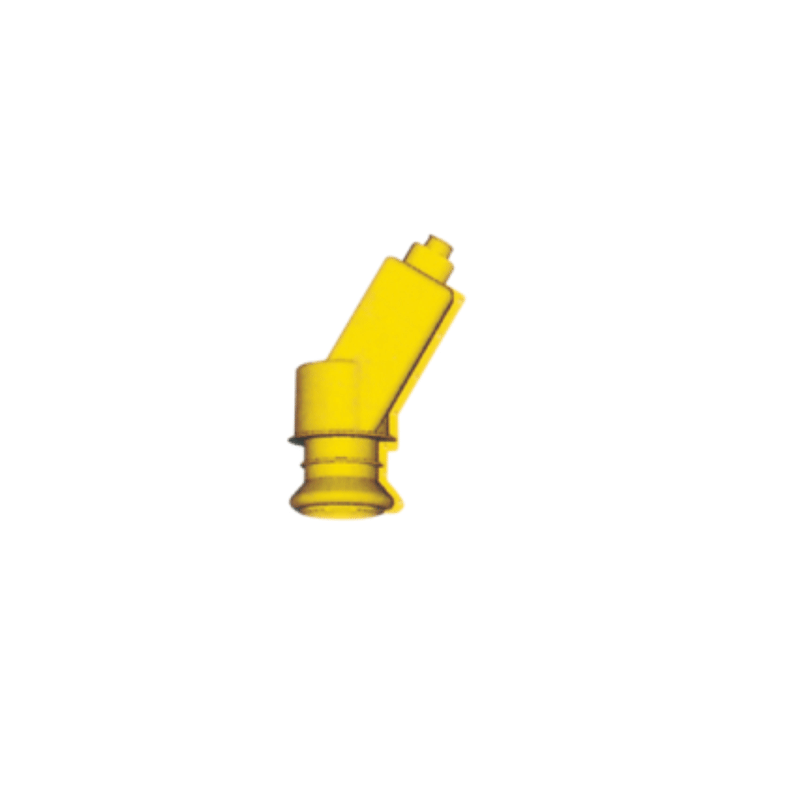

G10-03 M20 and below oil transformer clamp FT10-G05B Diagonal 1 X 120²~240² 20~500kVA











4-2





Type Order code Name of assorted fitting Silicon rubber sheath Remarks
Sheath Type Connection form Lead number x its sperification Applicable trans-former capacity

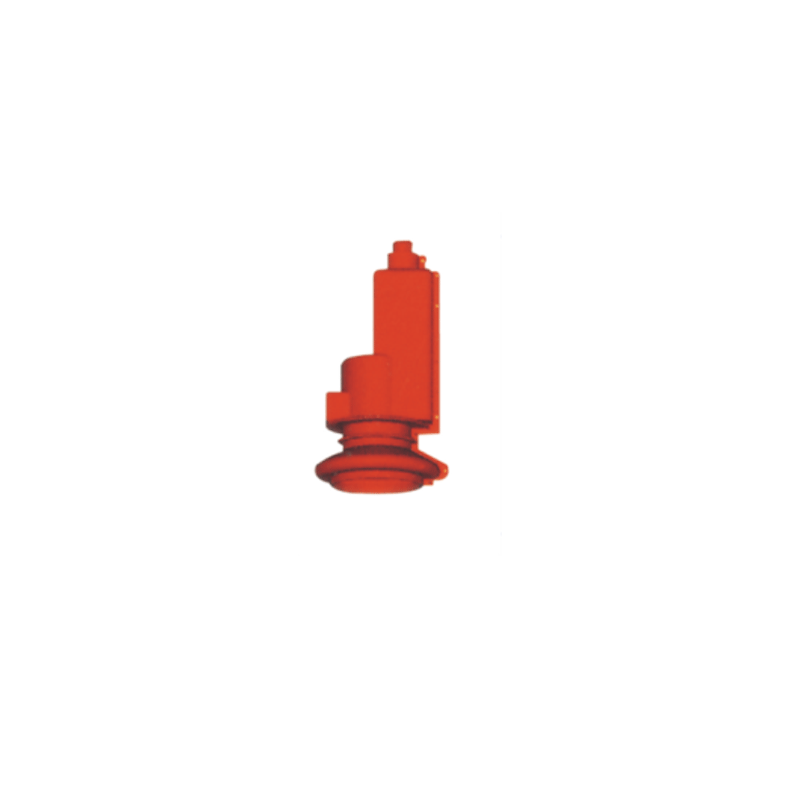

High voltage outlet G10-02 90 ° equipment cable clamp No.1 and No.2
0 ° single hole oil level clamp		 FT10-G04C Vertical 1 X 16²~70² 20~500kVA Silicon rubber
