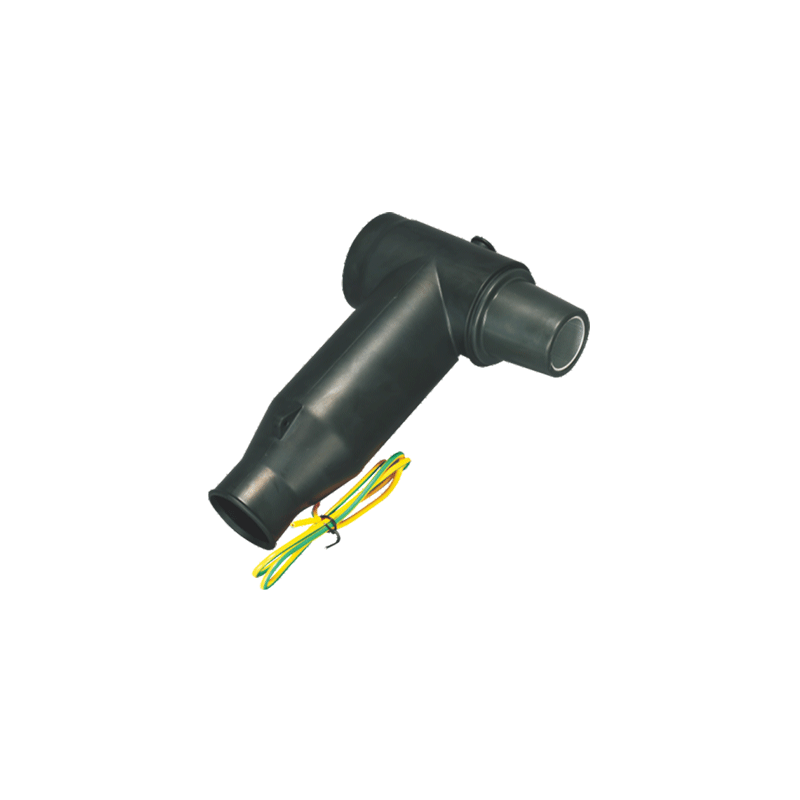

Applications
1、Connected with 630A prefabricated connector(PQJ),this type of connector prpvides extended connection between single-phanse Or three-phase cable and switchgear, transformer, cable distribution box and other electrical equipments.
2、Suitable for indoor or outdoor installations. Rated voltage: 8.7/15kV 12/20kV.
4、Rated continuous current: 630A.
5、Connect to coupling connector or surge arrester to enable multi-loop installation or provide over voltage protection.
Cable features
1、Power cable with extruded insulation(XLPE,EPR etc)
2、Comductor cross section:35~ 500mmm2
3、Type of cable conductor: copper or aluminum
Characteristics
1、Able to provide fully-shidlded or fully-sealed separable connections when used for multi-loop expansuon.
2、Long-time use in underwater or other severe environments.
3、No least phase distance requirement.
4、Compact design and pair-cable installation, suitable for the cable vault of standardswitchgear.
5、Installation in horizontal, vertical or any other angles.
Scope of delivery
1、T back connector
2、Adaptor
3、Conductor cable lug
4、Connect lug
5、Two head screw
6、Silicone Lubricant, Clearing Paper
7、Installation Instruction Sheet
8、Quality Certificate
Inference information

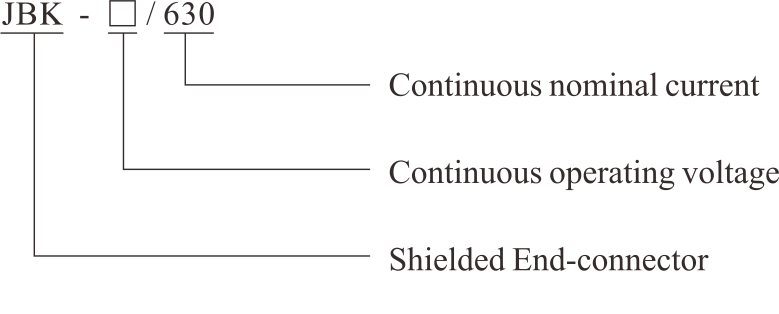

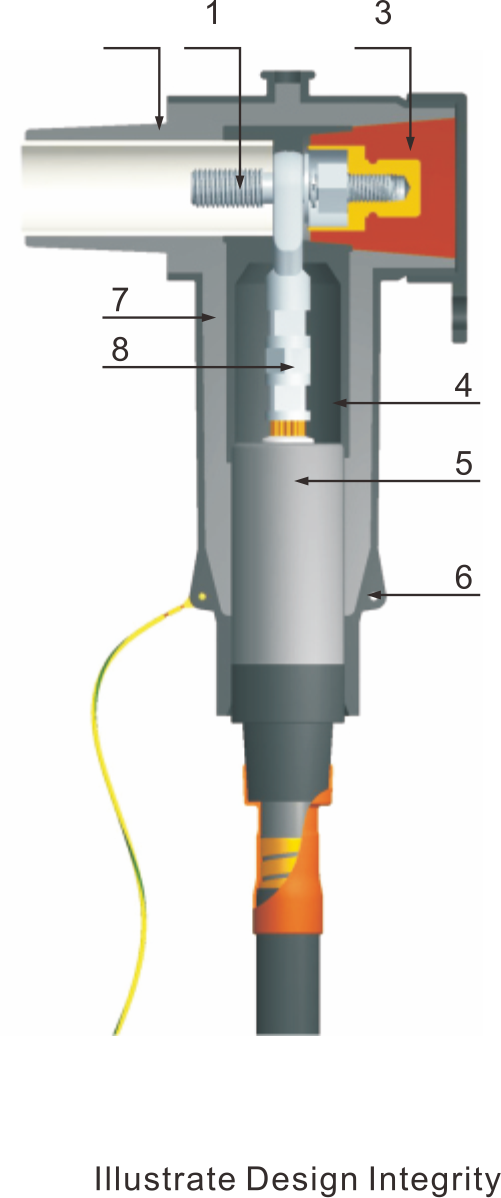

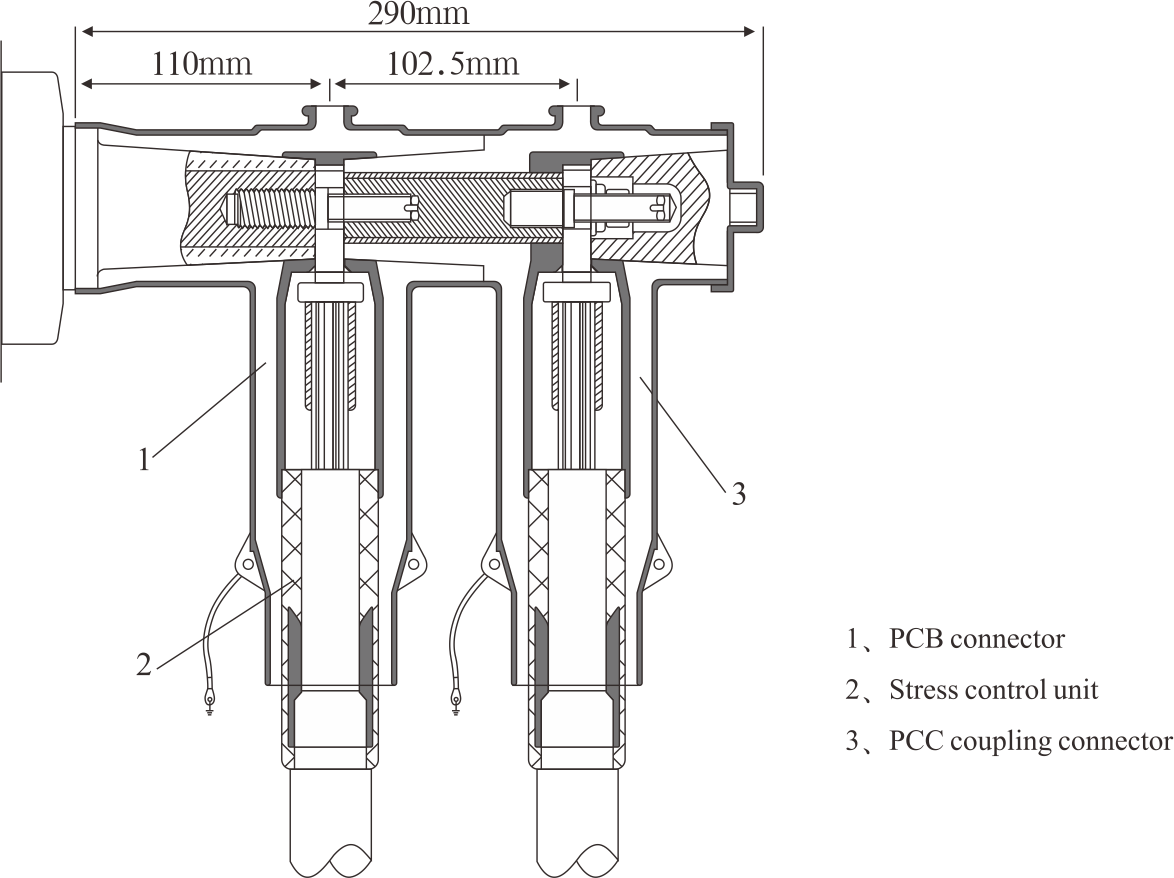

Scope of delivery
1、TWO HEAD SCREW: To make sure have a good contact with the apparatus bushing.
2、INSULATION: Moulded EPDM insulating rubber is formulated and mixed in-house to ensure high quality.
3、INSULATING PLUG: Moulded epoxy insulating plug provides excellent electrical, thermal and mechanical reliability.
4、SEMI-CONDUCTIVE INSERT: Moulded EPDM conducting rubber screen controls electrical stress.
5、STRESS RELIEF: The configuration of the outer screen and the cable adapter provide cable stress relief.
6、GROUNDING EYE: Moulded into the extemal screen for connection of an earthing wire.
7、SEMI-CONDUCTIVE SHIELD: Moulded EPDM conducting rubber mates with the cable screen to maintain screen continuity and ensure that the assembly is at earth potential.
8、CONDUCTOR CABLE LUG: Aluminum compression connector is sized to ensure a cool running connector with maximum current transfer.
