Product List

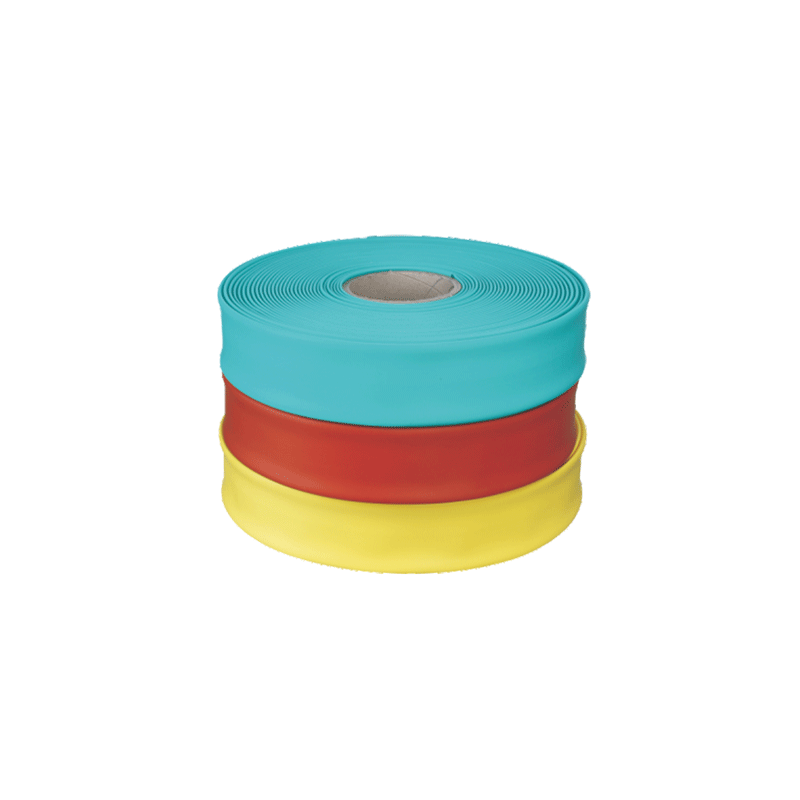

10kV, 35kV MPG series continuous length busbar protection heat shrink tubing

series heat-shrinkable cable terminals and joints have the function of water-proof, the stress control, shield and insulation, With the escellent electrical and mechanical functions, they be used in all kinds of foul conditions for a long time. With the light weight and easy mounting, they are widely used in power supply, and petrochemicals, meta-llurgy, railway station, sea port and constructions.

Category :
Heat shrink cable accessories 10kV, 35kV MPG series continuous length busbar protection heat shrinkable sleeves
Browse number : ...
Release time : 2023-11-30

Contact Us

Description

10kV、35kV MPG series heat shrinkable bus-bar tubes

Type/Specification	Width of buss bar	I.D(mm)of after recovered	I.D(mm)of before recovered
MPG□L-□20/10	20	≤10	＞20
MPG□L-□25/13	25	≤13	＞25
MPG□L-□30/15	30	≤15	＞30
MPG□L-□40/20	40	≤20	＞40
MPG□L-□50/25	50	≤25	＞50
MPG□L-□60/30	60	≤30	＞60
MPG□L-□70/35	70	≤35	＞70
MPG□L-□80/40	80	≤40	＞80
MPG□L-□80/45	80	≤45	＞80
MPG□L-□100/50	100	≤50	＞100
MPG□L-□120/60	120	≤60	＞120
MPG□L-□150/75	150	≤75	＞150
MPG□L-□180/90	180	≤90	＞180
MPG□L-□200/100	200	≤100	＞200
