Inference information
Order information
| Description |
Reference No |
Continuous operating voltage |
Continous nominal current |

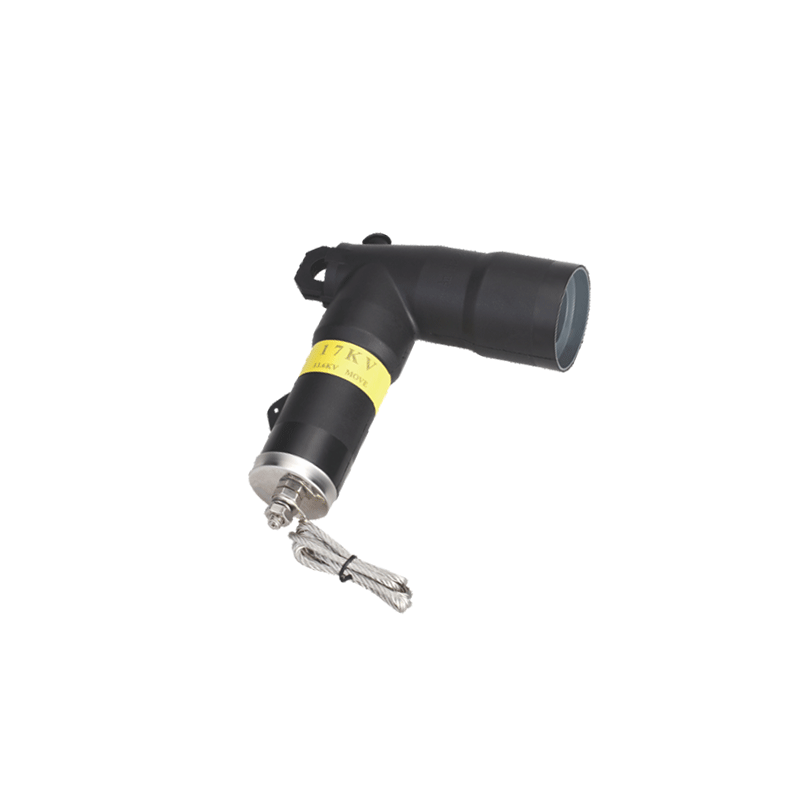

| 17/50kV Elbow surge arrester |
BLQ-17/50 |
17kV |
50A |
Scope of delivery
1、Elbow surge arrester
2、Silicone lubricant
3、Clearing paper
4、Insta 日ation instruction sheet
5、Quality certificate
6、Testing report

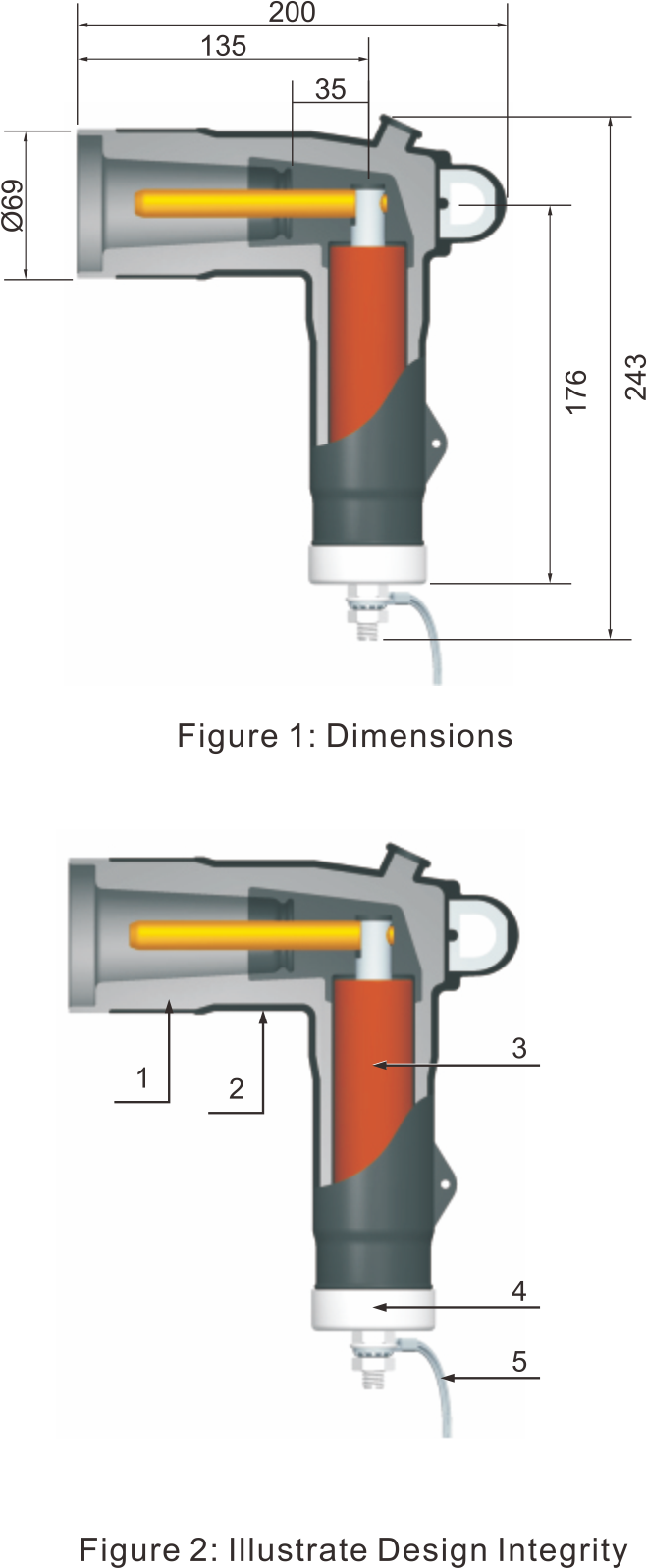

Product structure
1、EPDM INSULATION: High quality sulfur cured EPDM insulation is mixed and formulated in-house for complete control of insulation rubber characteristics.
2、SEMI-CONDUCTIVE SHIELD: Molded semi-conductive EPDM shield meets requirements of ANSI/IEEE Standard 592.
3、ARRESTER CORE: Compose of the zinc oxide lightning arrester valve slice which through special process treatment.
4、PROBE: Probe provides reliable conductive path with mating female contacts.
5、GROUNDING WIRE:(Optional for larger grounding wire) Used for impulse voltage effective . after leads to grounding position.
