Maln techmical data
1. Tensile strength:> 12Mpa
2. Breakdown strength: ≥25KV/mm
3. Volume resistivity: > 10∧14 Ω.cm
4. Water absorption:<0.1% .
5. Operating temperature: -40C~90C
6. Standard colors: Red/Green/ Yellow/Blue/Black

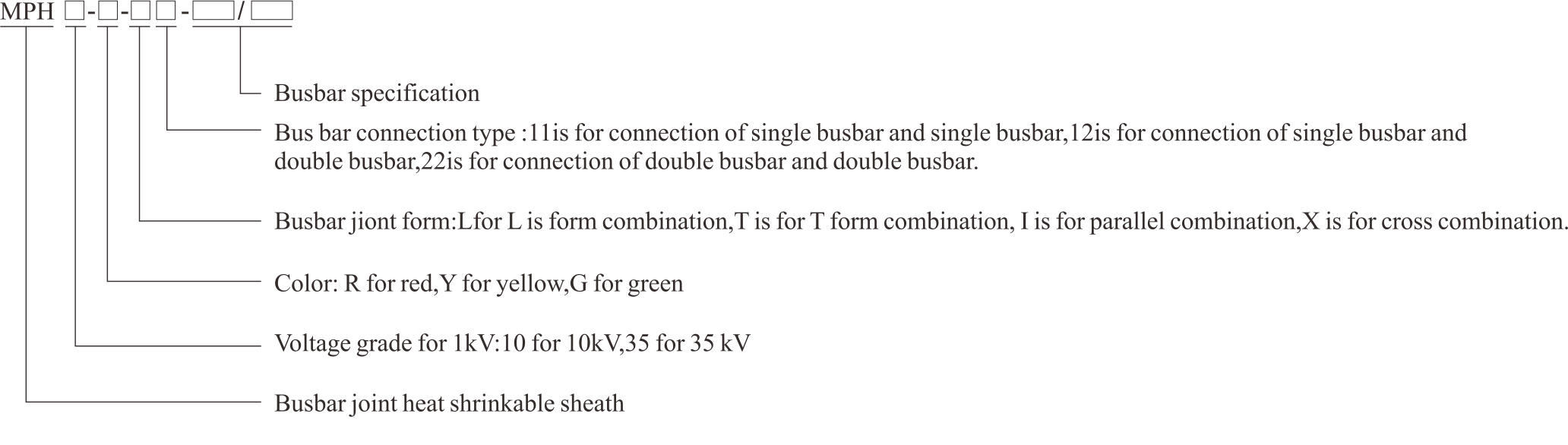

Modeldes
Main property inder
Product spectification
| Type/Specification |
Specification |
Suitable bus bar spec |
Explain |
| MPH10-R-L22 |
100 X 10; 100 X 10 |
100 X 10; 100 X 10 |
Red; L shaped joint |
| 10KV; 100X 10 double-bus overlapped with 100 X 10 double-bus |
| MPH10-Y-T12 |
100 X 10; 80 X 8 |
100 X 10; 80 X 8 |
Yellow; T shaped joint |
| 10KV; 100X 10 double-bus overlapped with 80 X 8 double-bus |
| MPH10-G-T11 |
120 X 10; 120 X 10 |
120 X 10; 120 X 10 |
Yellow; T shaped joint |
| 10KV; 100X 10 double-bus overlapped with 80 X 8 double-bus |
| MPH10-R-X22 |
100 X 10; 100 X 10 |
100 X 10; 100 X 10 |
Yellow; T shaped joint |
| 10KV; 100X 10 double-bus overlapped with 80 X 8 double-bus |
Note: various bus joint thermal shrinkage shields also are available, as the bus joint has numerous combining forms, please remember to indicate the bus specification and connection form clearly when placing an order, the company also is able to process according to the drawings provided by customers.
