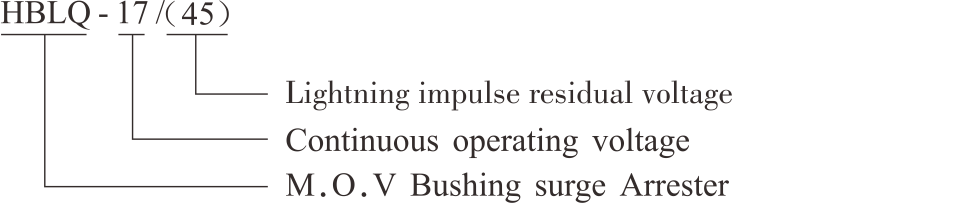

Inference information

Product strucure

1、Insulation layer: the unique formula and mixing technology to ensure that the quality of prefabricated EPDMinsulation rubber.
2、The outer semi conductive layer: prefabricated EPDM conductive rubber in accordance with the IEEE592standard.
3、lightning arrester core is composed of Zinc Oxide MOA through special process of.
4、Bottom cover of the copper: copper bottom cover and arrester conductive layer closely, lightning arresterwaterproof. And arrester provide grounding.
5、Grounding wire: the lower end of the lightning arrester comes with the ground wire, used to effectivelyconnect the lightning impulse voltage to the ground position.
6、The inner semi conductive layer: pre fabricated EPDM conductive rubber effective control of electrical stress.
7、Double headed bolt: tin plated copper bolts to ensure that the conductor and casing tight fit.
8、Insulator end cap: to make the product with insulation sealing effect.

Scope of delivery

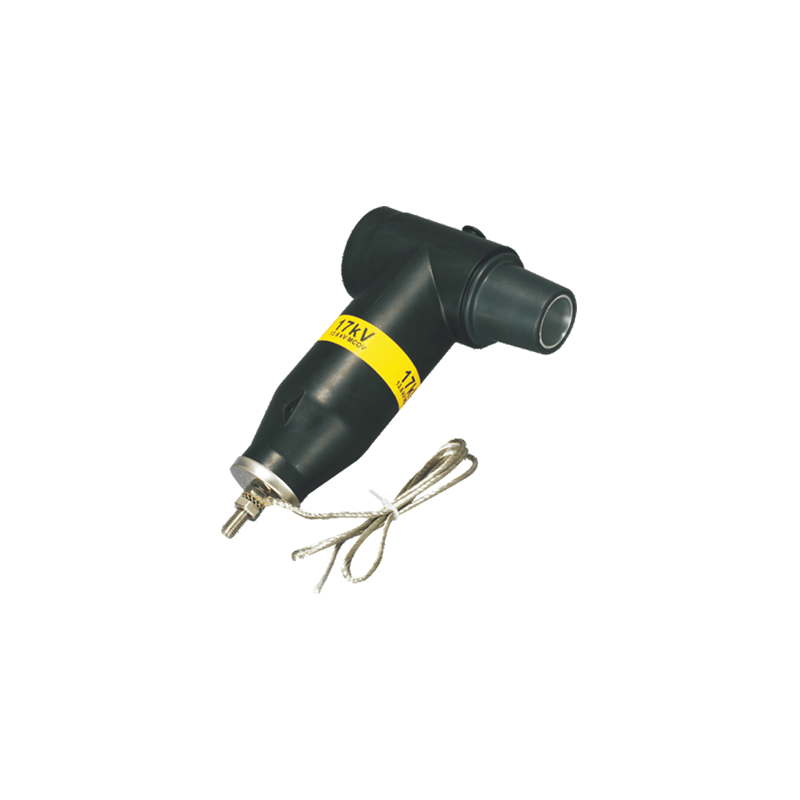

1、M.0.V Bushing surge arrester
2、Two head screw
3、Insulator
4、Clearing paper
5、Silicone lubricant
6、Testing report
7、Installation instruction sheet
8、Quality certificate
