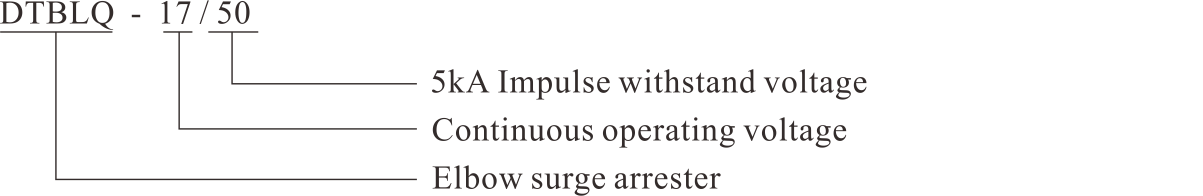

Inference information
Order information
| Description |
Reference No |
Continuous operating voltage |
Continous nominal current |

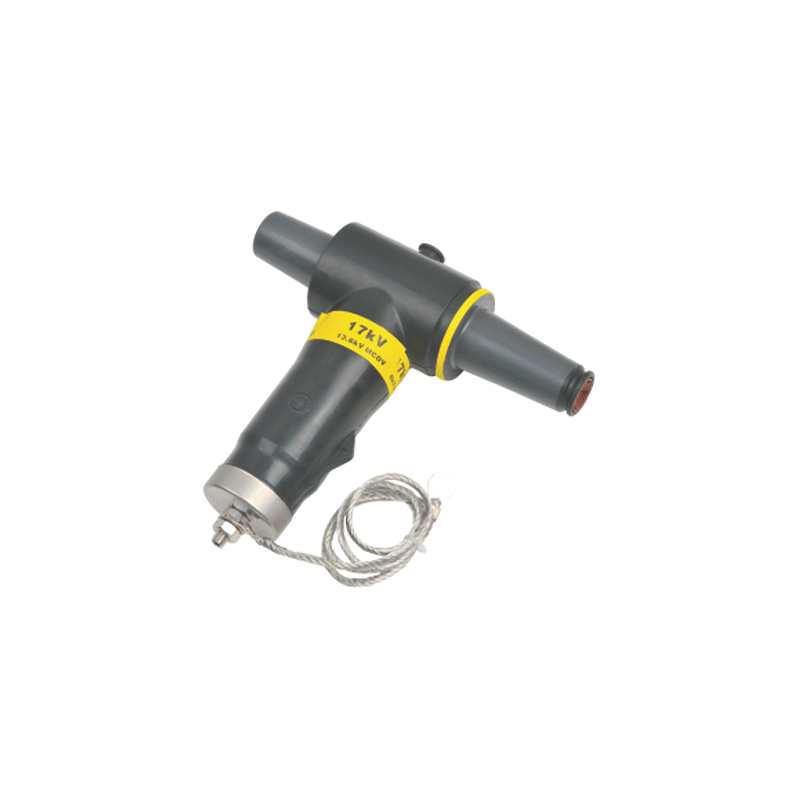

| 17/50kV Surge arrester insert |
BTBLQ-17/50 |
17kV |
50A |
Scope of delivery
1、Surge arrester insert
2、Hex wrench
3、Silicone lubricant
4、Clearing paper
5、Installation instruction sheet
6、Quality certificate
7、Testing report

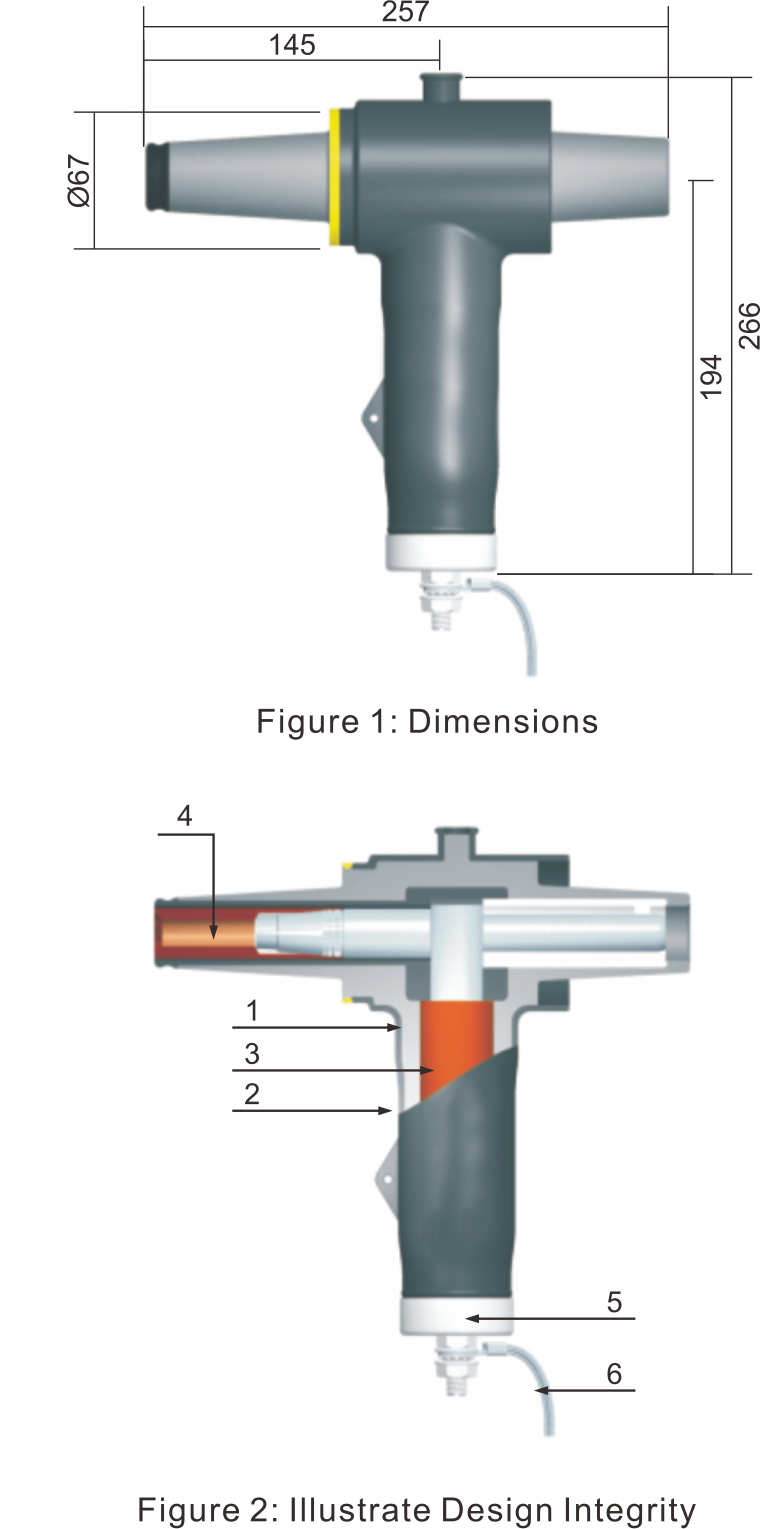

Product structure
1、EPDM INSULATION: High quality sulfur cured EPDM insulation is mixed and formulated inhouse for complete control of insulation rubber characteristics.
2、SEMI-CONDUCTIVE SHIELD: Molded semi-conductive EPDM shield meets requirements of ANSI/IEEE Standard 592.
3、ARRESTER CORE: Compose of the zinc oxide lightning arrester valve slice which through special process treatment.
4、ARC SNUFFER ASSEMBLY: Arc-ablative plastic produces arc extinguishing gas during load break switching operations.
5、PROBE: Probe provides reliable conductive path with mating female contacts.
6、GROUNDING WIRE:(Optional for larger grounding wire) Used for impulse voltage effective after leads to grounding position.
