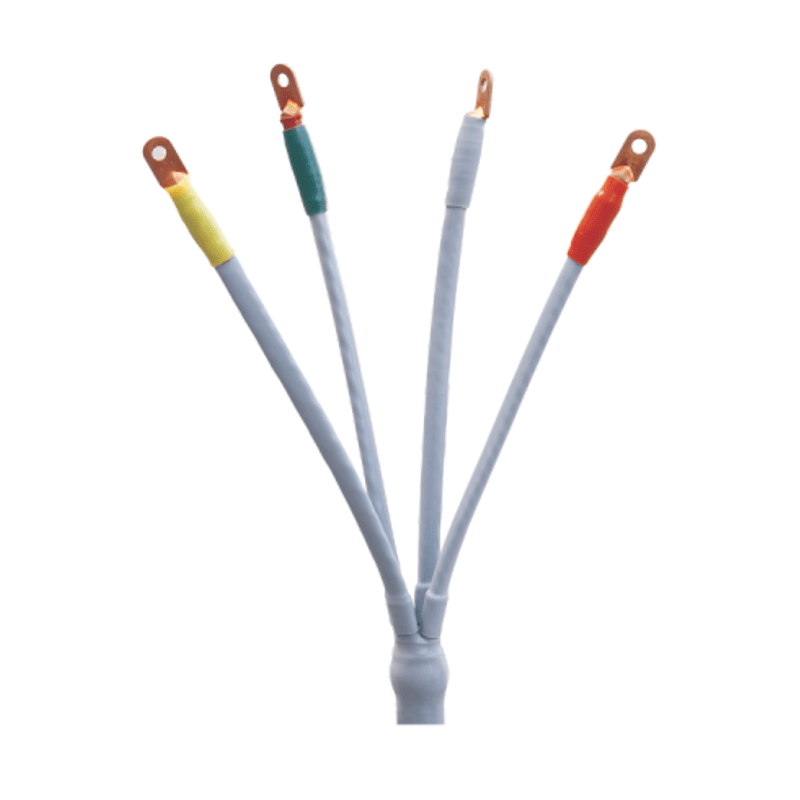

0.6/1kV full-cold-shrinkable terminal
0.6/1 kV full-cold-shrinkable terminal is made of imported silicon rubber,with obvious advantages such as climate resistance, acid and alkali resistance, anti
ultraviolet rays, hydrophobic property and so on. It is divided into one-core type,two-core type, three-core type, four-core type and five-core type. It can wrap the
cable of 10-400mm，adopting the colorful (red, yellow, green and gray) seal tubethat is also used as chromatography tube, without the PVC tape. It is featured withmulti seal, waterproof, moisture proof and excellent performance.
0.6/1kV full-cold-shrinkable cable accessory specification list
| Name |
Sperification |
Suitable cable section |
| Full-cold-shrinkable one-core terminal |
LS-1/1.0 |
10-16 |
| LS-1/1.1 |
25-50 |
| LS-1/1.2 |
70-120 |
| LS-1/1.3 |
150-240 |
| LS-1/1.4 |
300-400 |
| LS-1/1.5 |
500-630 |
| Full-cole-shrinkable two-core terminal |
LS-1/2.0 |
10-16
|
| LS-1/2.1 |
15-50 |
| LS-1/2.2 |
70-120 |
| LS-1/2.3 |
150-240 |
| LS-1/2.4 |
300-400 |
| Full-cole-shrinkable three-core terminal |
LS-1/3.0 |
10-16 |
| LS-1/3.1 |
25-50 |
| LS-1/3.2 |
70-120 |
| LS-1/3.3 |
150-240 |
| LS-1/3.4 |
300-400 |
| Full-cole-shrinkable four-core terminal |
LS-1/4.0 |
10-16 |
| LS-1/4.1 |
25-50 |
| LS-1/4.2 |
70-120 |
| LS-1/4.3 |
150-240 |
| LS-1/4.4 |
300-400 |
| Full-cole-shrinkable five-core terminal |
LS-1/5.0 |
10-16 |
| LS-1/5.1 |
25-50 |
| LS-1/5.2 |
70-120 |
| LS-1/5.3 |
150-240 |
| LS-1/5.4 |
300-400 |
