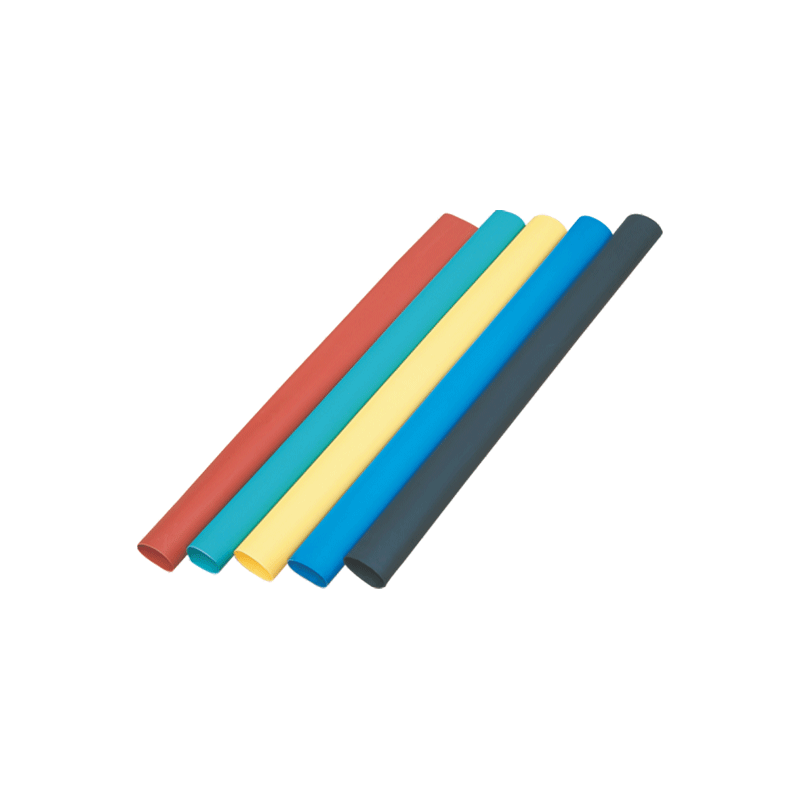

10kV、35kV MPG series heat shrinkable bus-bar tubes

MPG series heat shrinkable radiation cross-linking protection tube is made from the material with good electrical insulation for safty protection. With easy insfalled, suitable for enrivenment and long useful life,they are widely used in the busbar of high and low voltage switchbards,power supply station and transforming station for insulation and safety protection. Avoid the short circuit,electric shock and pollution the usage of busbar.

Category :
Heat shrink cable accessories 10kV, 35kV MPG series busbar protection heat shrinkable sleeves
Browse number : ...
Release time : 2023-11-30

Contact Us

Description

10kV、35kV MPG series heat shrinkable bus-bar tubes

Type/Specification	Width of buss bar	I.D(mm)of after recovered	I.D(mm)of before recovered
MPG□-□25/12	20	＜12	＞25
MPG□-□30/15	30	＜15	＞30
MPG□-□40/20	40	＜20	＞40
MPG□-□50/50	50	＜50	＞50
MPG□-□60/30	60	＜30	＞65
MPG□-□70/35	80	＜35	＞75
MPG□-□80/40	90	＜40	＞85
MPG□-□100/50	100	＜50	＞100
MPG□-□120/60	120	＜60	＞120
MPG□-□150/75	150	＜75	＞150
MPG□-□180/90	180	＜90	＞180
MPG□-□200/100	200	＜100	＞200
