Product List

S1 series transformer insulated sheaths

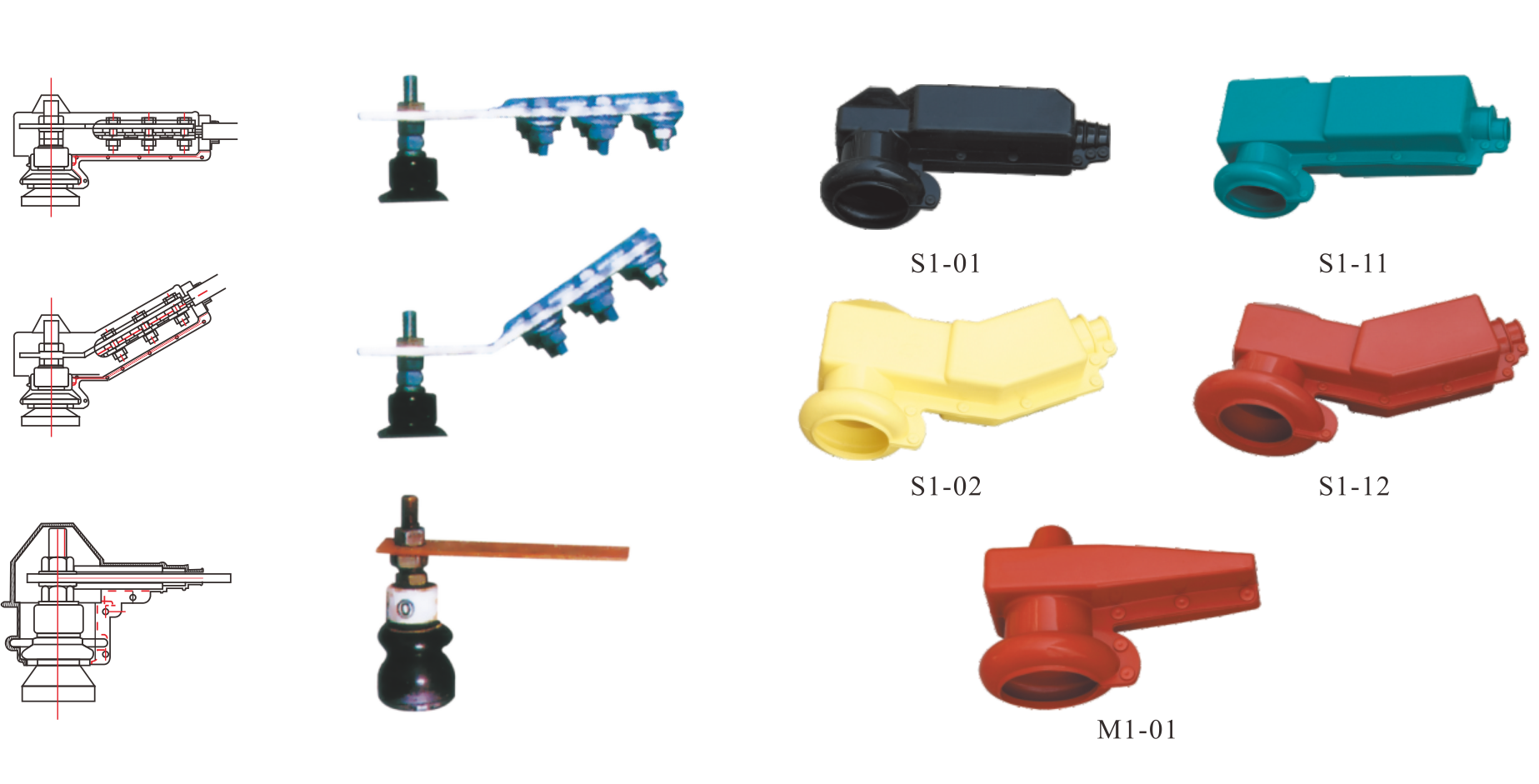

Type	Order code	Name of assorted fitting	Silicon rubber sheath				Remarks
Type	Sheath	Name of assorted fitting	Type	Connection form	Lead number x its sperification	Applicable trans-former capacity	Remarks

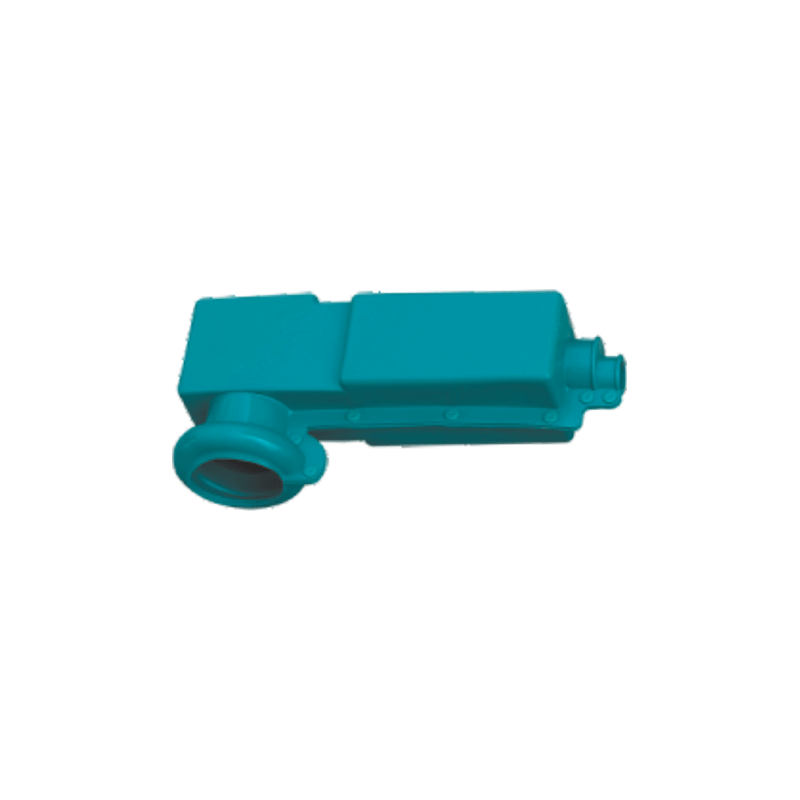

Low voltage outlet	S1-11	Device 34 clamp 0 °	FT1-SA	Horizontal	1 X 120²~240²	20~500kVA	Silicon rubber

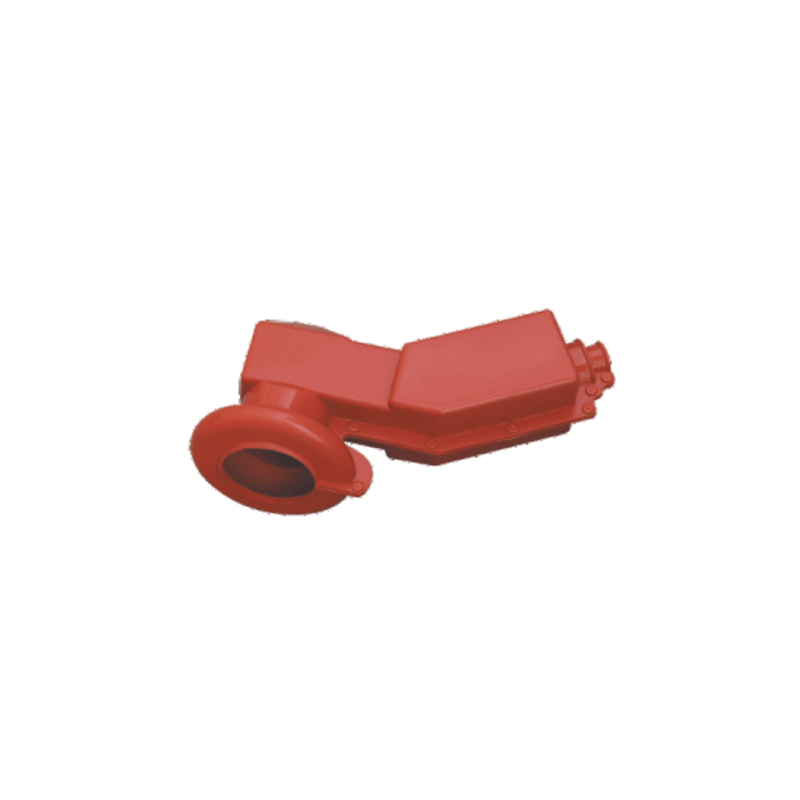

	S1-12	Device 34 clamp 30 °	FT1-SB	Diagonal	1 X 120²~240²	20~500kVA

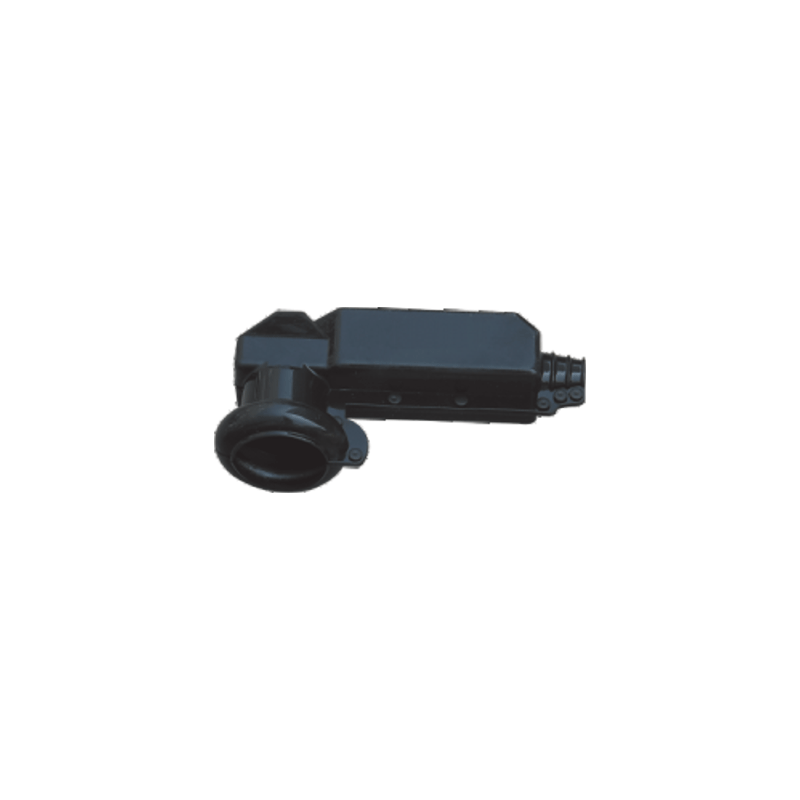

	S1-01	Device 12 clamp 0 °	FT1-SA/1	Horizontal	1 X 35²~95²	20~500kVA

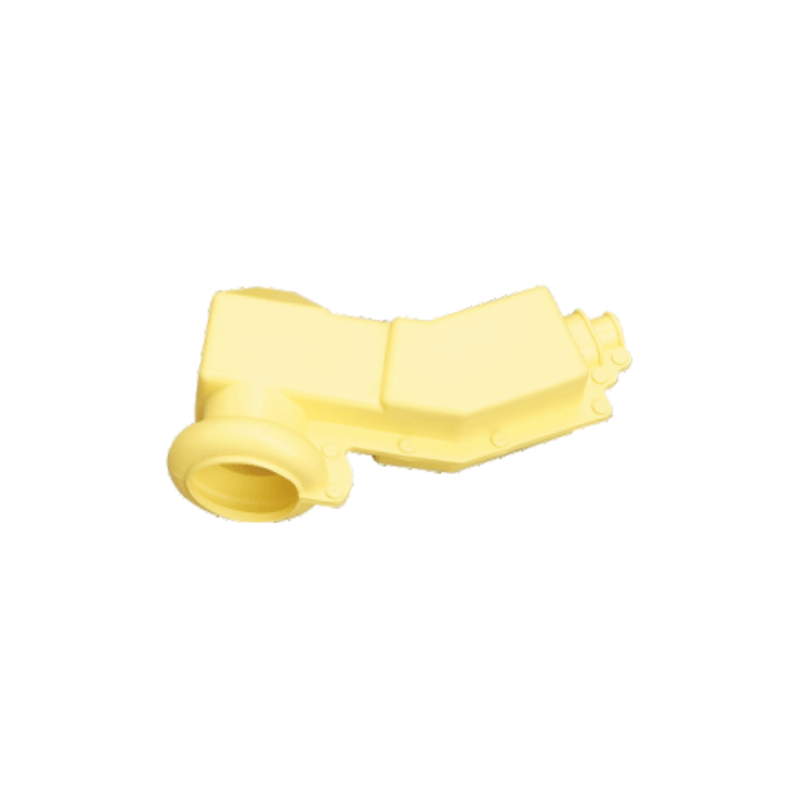

	S1-02	Device 12 clamp 30 °	FT1-SB/1	Diagonal	1 X 35²~95²	20~500kVA

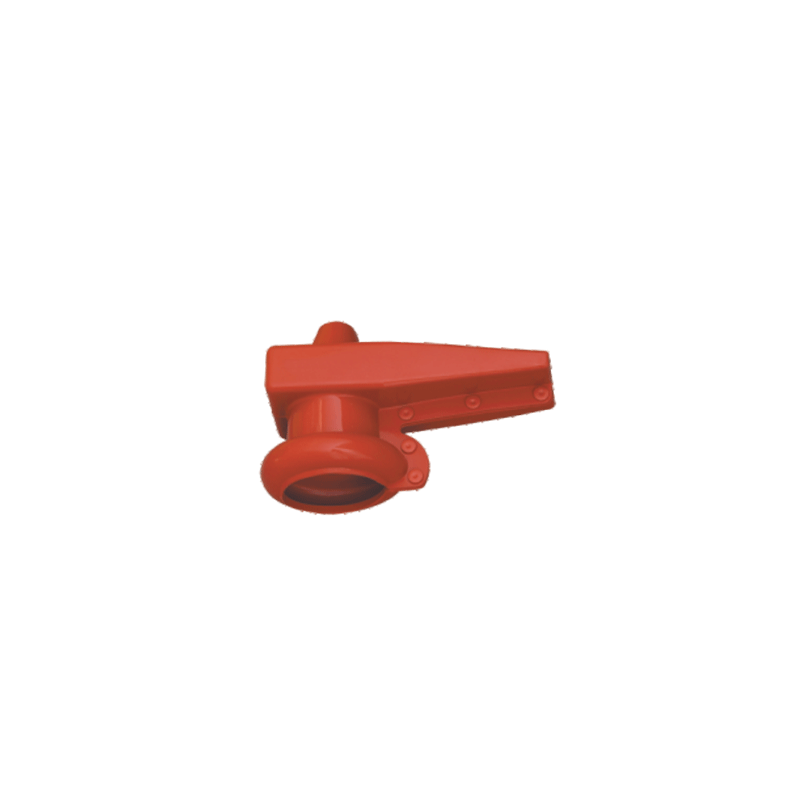

	M1-01	Busbar	FT1-MA	Horizontal	4-8 X 40~80	20~500kVA

Type	Order code	Name of assorted fitting	Silicon rubber sheath				Remarks
Type	Sheath	Name of assorted fitting	Type	Connection form	Lead number x its sperification	Applicable trans-former capacity	Remarks
Low voltage outlet	S1-11	Device 34 clamp 0 °	FT1-SA	Horizontal	1 X 120²~240²	20~500kVA	Silicon rubber
	S1-12	Device 34 clamp 30 °	FT1-SB	Diagonal	1 X 120²~240²	20~500kVA
	S1-01	Device 12 clamp 0 °	FT1-SA/1	Horizontal	1 X 35²~95²	20~500kVA
	S1-02	Device 12 clamp 30 °	FT1-SB/1	Diagonal	1 X 35²~95²	20~500kVA
	M1-01	Busbar	FT1-MA	Horizontal	4-8 X 40~80	20~500kVA
