  • Description

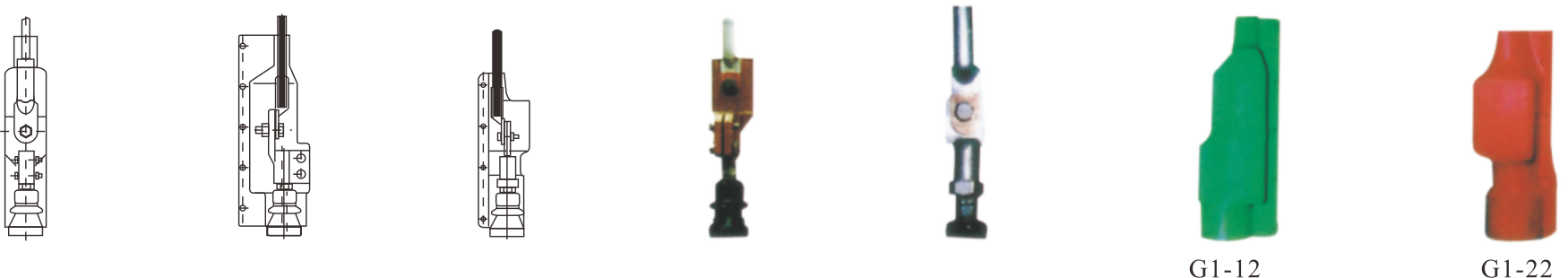

     3-1





Type Order code Name of assorted fitting Silicon rubber sheath Remarks
Sheath Type Connection form Lead number x its sperification Applicable trans-former capacity

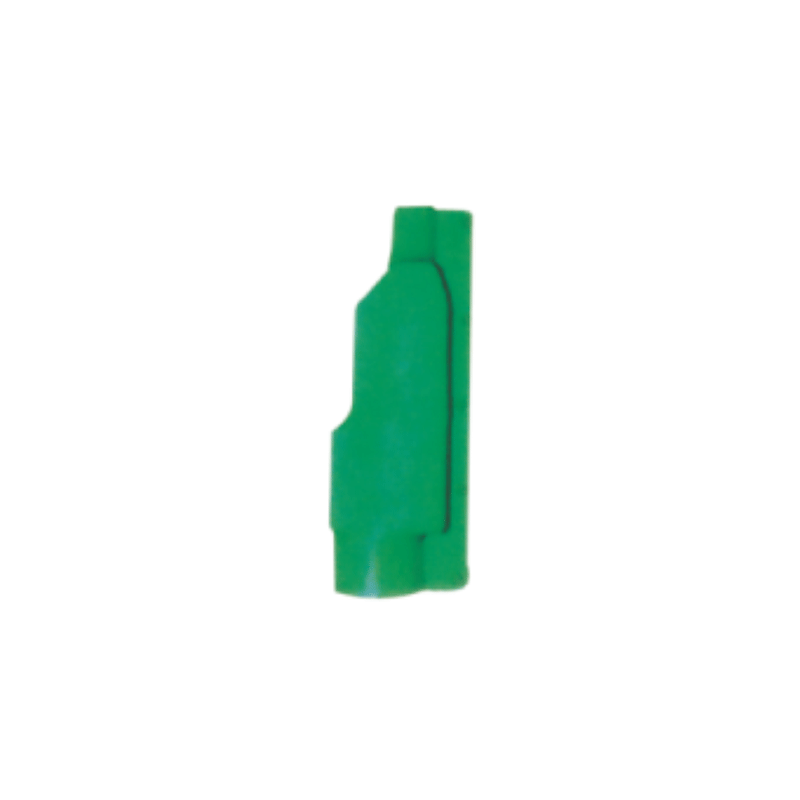

Low voltage outlet G1-12 0 ° single hole oil transformer clamp FT10-G12C Vertical 1 X 35²~240² 20~400kVA Silicon rubber

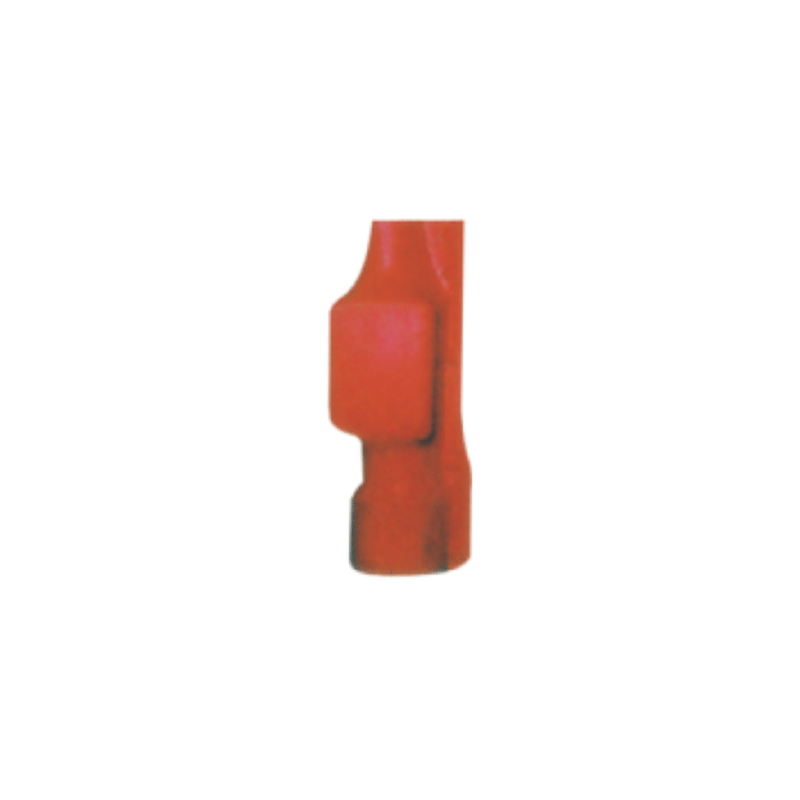

G1-22 Closed oil transformer clamp FT10-G22C Vertical 1 X 35²~150² 20~400kVA

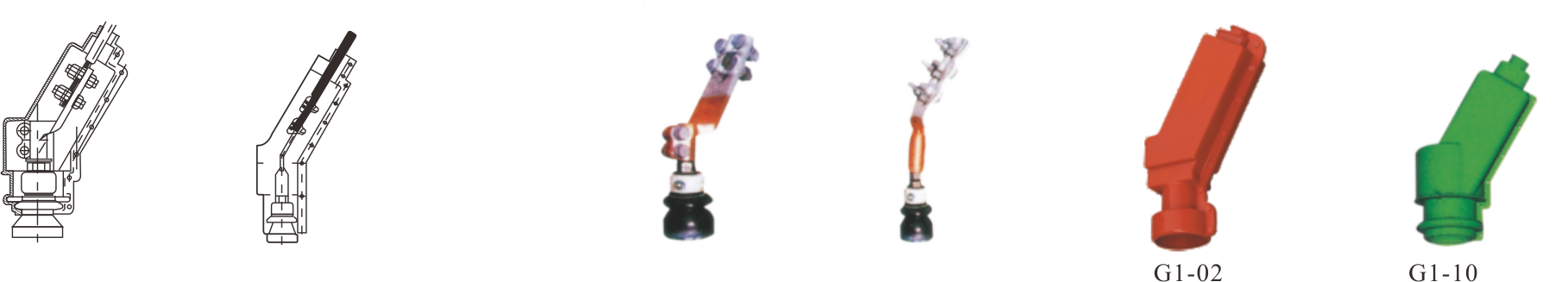

     3-2





Type Order code Name of assorted fitting Silicon rubber sheath Remarks
Sheath Type Connection form Lead number x its sperification Applicable trans-former capacity

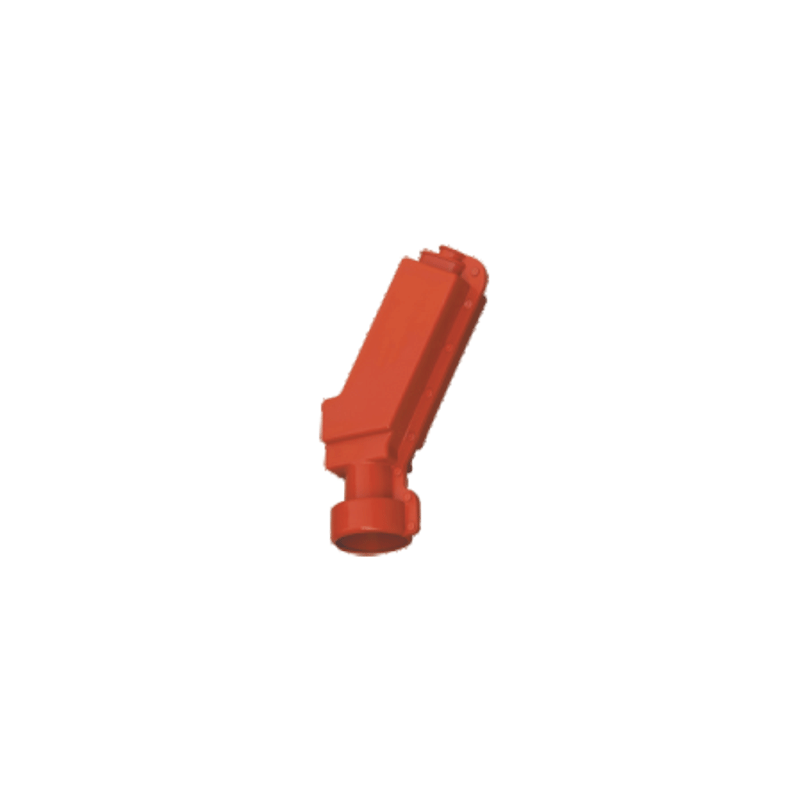

Low voltage outlet G1-02 M16 and below oil transformer clamp G1-02 Diagonal 1 X 35²~120² 20~500kVA Silicon rubber
  M20 and below oil transformer clamp FT10-G05B Diagonal 1 X 35²~240² 20~500kVA









Return to List
