Installation method

1、ready to work
     a. check with glass stel shell applicable specifications and dimensions and the cable diameter and the middle of the head (stress cone or cuprum shell) with the size is consistent;
     b. check the glass steel shell sealing material (dral opening sealing pad, glass steel shell port and cable sealing material: strip and heat shrinkable tube) is complete.
     c. check the high voltage cable epoxy mud two component cable plastic packaging is complete, the amount of the group is sufficient;

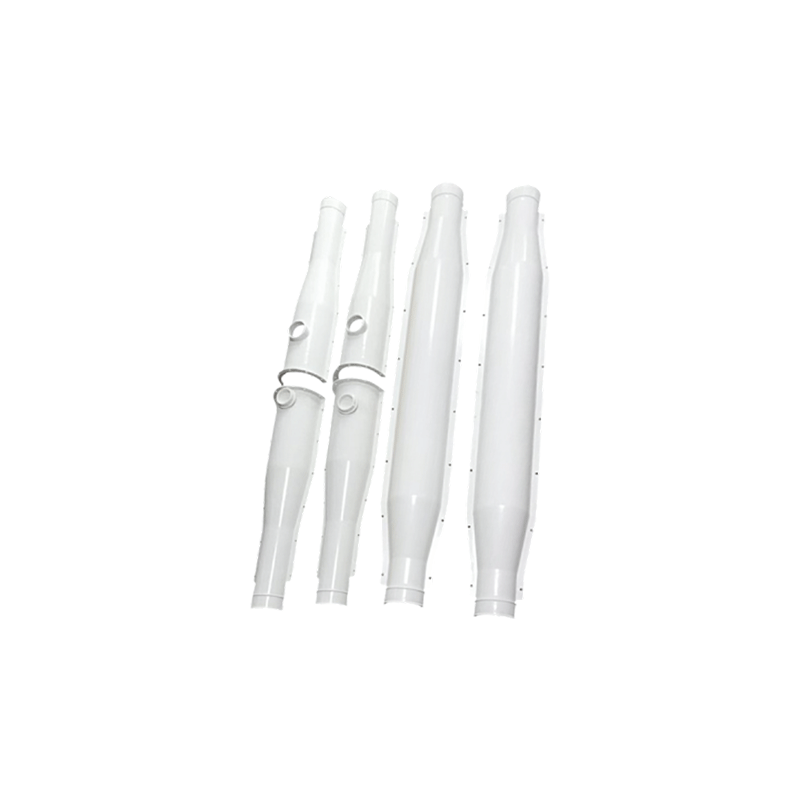

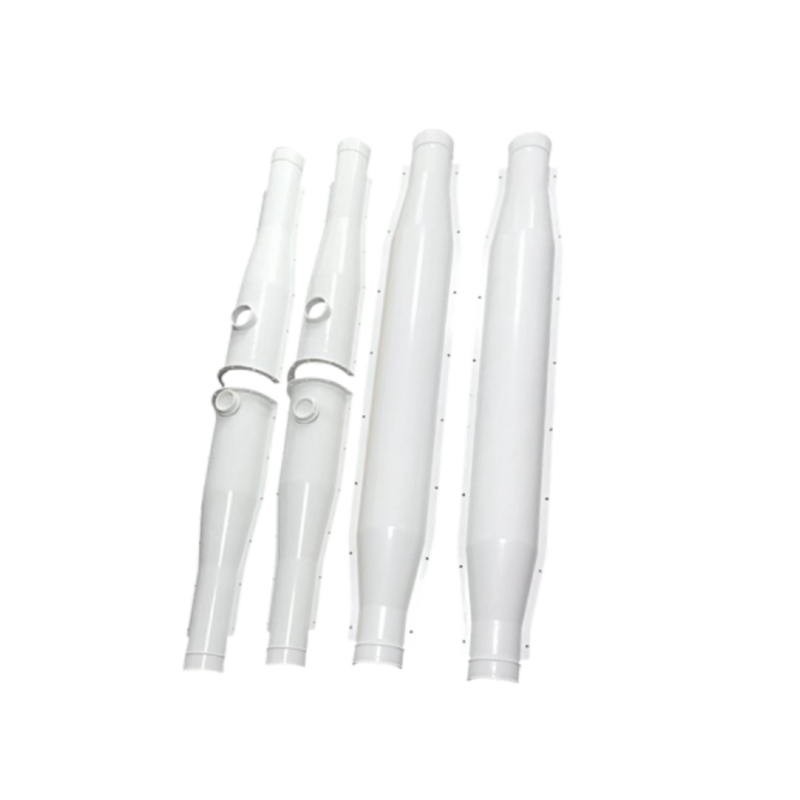

2、the glass fiber reinforced plastic shell assembly
     Towards the middle of the installation of the glass steel shell joint segment cleaning, glass steel shell mounted on half, leads to a coaxial cable or cable, tighten the plurality of bolts,    explosion-proof box two port and the Coaxial cable and grounding cable sealing process (including sealing strip and shrink tube);
3、talc powder is added to the epoxy mud, and then the two groups of high pressure cable epoxy mud together to mix evenly; .
4、the glass fiber reinforced plastic shell two port filled with epoxy mud; epoxy mud to the housing a bit inclined part of the outside, and then wrap around thewaterproof tape. The two port covered.
5、sealing, installation.
