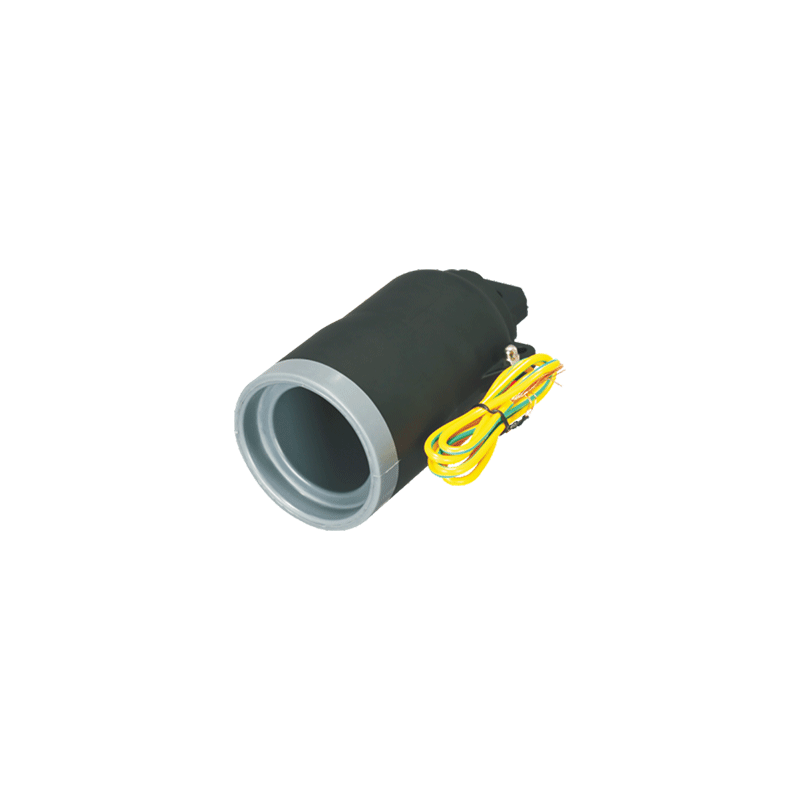

JYM-12/630A Insulated protective cap

JYM-12/630A Insulated protective cap

12kV/24kV 630A Insulated Protective Cap is an accessory device designed to electrically insulate and mechanically seal load break bushing interfaces. When mated to a load break product and the drain wire is attached to ground, the Insulated Protective Cap
provides a fully shielded, submersible insulating cover for energized bushings. The Insulated Protective Cap can be used for permanent or temporary installation on 200A bushings, junctions or insulated stand off bushing.
Contact Us
  • Description
  • Structure

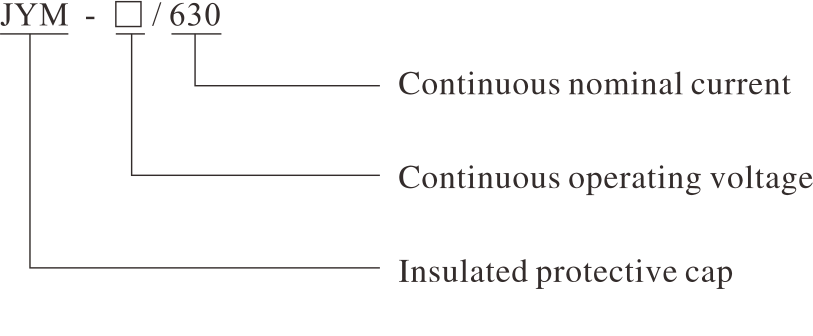

Inference information



2-JYW-12 630a 绝缘帽编号说明









Order information



Description Reference No
12kV 630A Integral Protective Cap JYM-12/630
24kV 630A Integral Protective Cap JYM-24/630









Scope of delivery



1. Operating ring: made of stainless steel, convenient for product installation and operation;
2. Insulation layer: unique formula and mixing technology ensure the high-quality quality of prefabricated EPDM insulation rubber;
3. Outer semi conductive layer: Prefabricated EPDM conductive rubber complies with IEEE592 standard;
4. Internal thread: The internal thread is M16-2;
5. Grounding eye: Ground the product through the grounding eye.

2-JYW-12 630a 绝缘帽产品构造图
