Scope of delivery

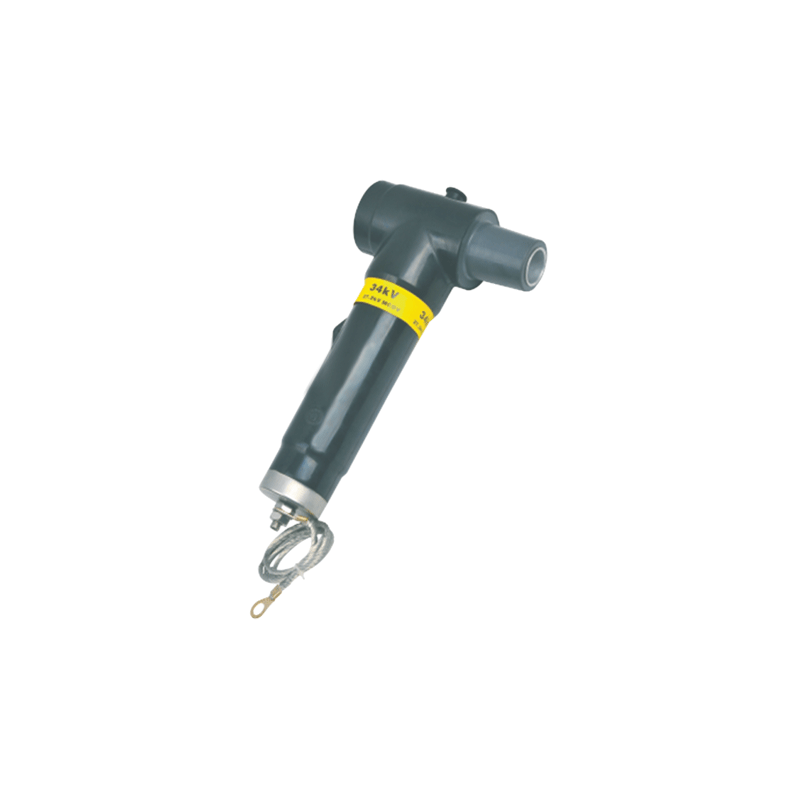

1、Elbow surge arrester
2、Silicone lubricant
3、Clearing paper
4、Installation instruction sheet
5、Quality certificate
6、Testing report
Inference information

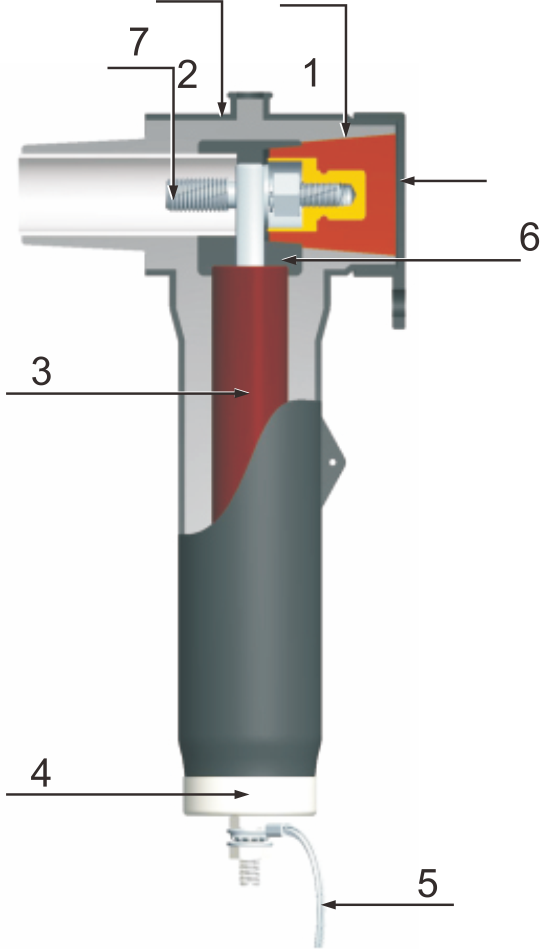

Product structure
1、Epdm insulation: High quality sulfur cured EPDM insulation is mixed and formulated in-house for complete control of insulating rubber characteristics.
2、Semi-conductive shield: Molded semi-conductive EPDM shield meets requirements of ANSI/IEEE standard 592.
3、Arrester core: compose of the zinc oxide lightning arrester valve slice which through special process treatment.
4、Probe: probe provides reliable conductive path with mating female contacts.
5、Grounding wire:(Optional for larger grounding wire) used for impulse voltage effective after leads to grounding position.
