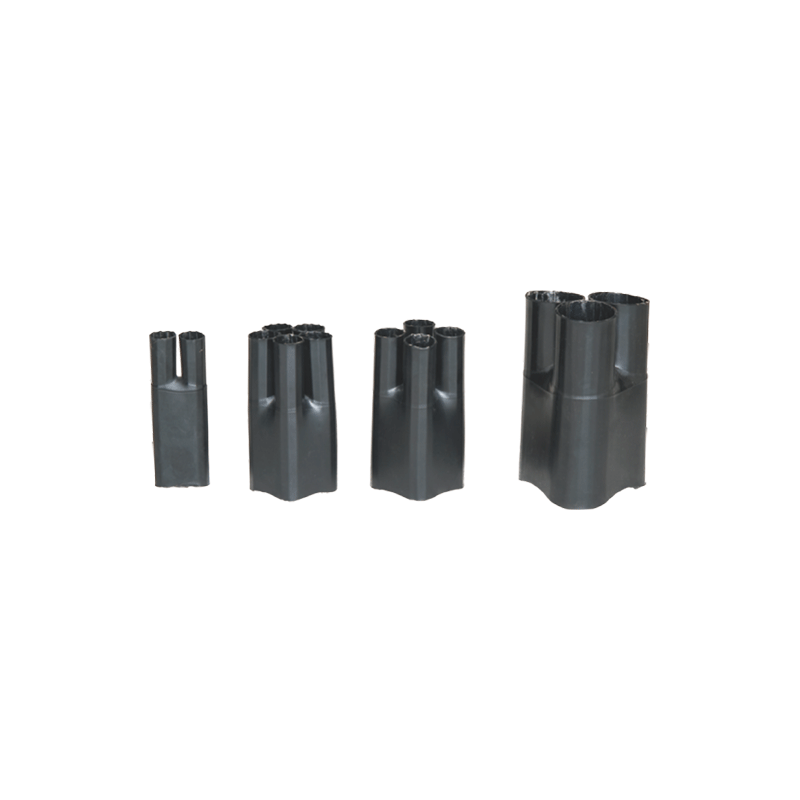

1-35kV Thermal-shrinkable branch sheath

1-35kV Thermal-shrinkable branch sheath

Apply to the bronch seal of the power cable,in order to make the cable waterproof and provide mechanical prote cfion
Contact Us
  • Description





Type Specification Before shrinked(mm) Affer Rccovcd
Body Side Finger Side Body Side Finger Side
TWO-CORE ZT-1/2.0 33 10 12.0 3.4
ZT-1/2.1 48 15 19.0 5
ZT-1/2.2 65 20 22 8
ZT-1/2.3 98 38 37 14.2
  Body Side Finger Side Body Side Finger Side
THREE-CORE ZT-1/3.0 34 15 20.0 5.5
ZT-1/3.1 50 25 26.0 6.9
ZT-10/3.1 75 32 38 10
ZT-10/3.2 86 40 48 14.0
ZT-10/3.3 112 50 59 18
ZT-10/3.4 14.5 63 70.0 24.0
  Body Side Finger Side Body Side Finger Side
FOUR-CORE ZT-1/4.0  40  15  22  4.8
ZT-1/4.1  53  20  25.0  5.0
ZT-1/4.2  73  24  33  7.5
ZT-1/4.3  86  34  40.0  11.0
  105 38 41 12
  Body Side Finger Side Body Side Finger Side
FIVE-CORE ZT-1/5.0  40 13  21.0  4.0
ZT-1/5.1  54  17  30  5.2
ZT-1/5.2  78  25  39.0  9.0
ZT-1/5.3  100  36  46.0  11.0
Return to List
