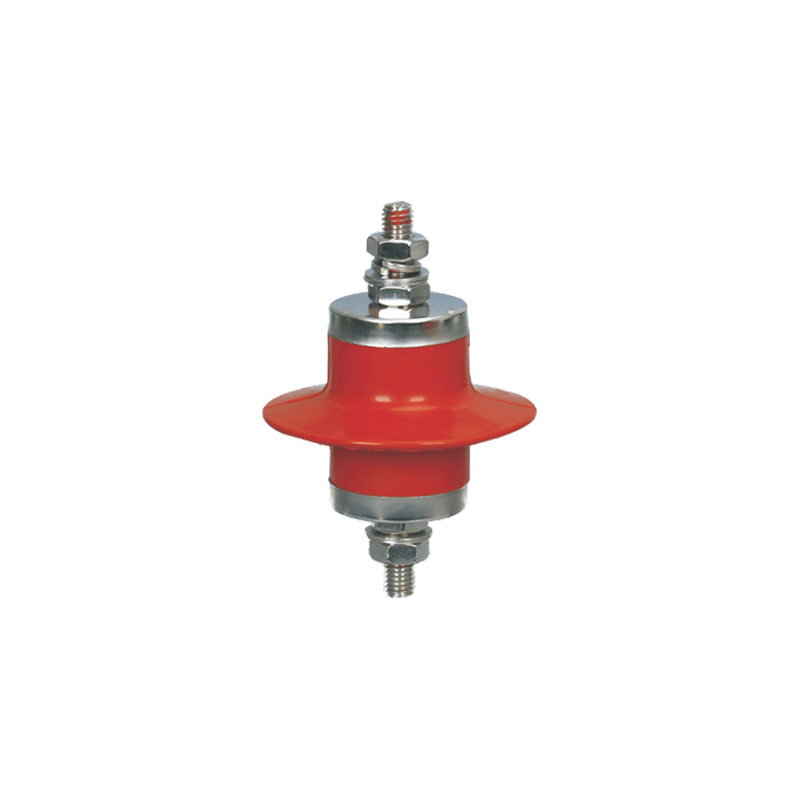

HY2.5WD-0.66~1.14KV

HY2.5WD-0.66~1.14KV

Composite insulation jacket adopted, conform to the international power products miniaturization，security, maintenance-free development trend. Polymer organic . composite materials and traditional ceramic and glass and other inorganic materials, compared with a small size, light weight, pollution- free cleaning, explosion-proof antivibration advantages. Is integrated, modular high-voltage power transmission equipment in the preferred lightning protection components.
Contact Us
  • Description

The model definition of this product fully complies with the provisions of JB/T8459-2006 "Method for Compiling Lightning Arrester Product Models". The specific model description is as follows:





1-HYW-0.22~0.66KV-1









2-HY2.5WD-0.66~1.14KV-1







HY2.5WD-0.66~1.14kV



Location of lightning arrester usage Lightning arrester model Effective value of rated voltage (kV) of lightning arrester System nominal voltage (KV) effective value Effective value of continuous operating voltage (KV) DC ImA reference voltage (kV) not less than Maximum residual voltage kV (peak) under lightning impulse current Two thousand μ S-wave current capacity 4/10 high current tolerance (KA) Maximum leakage current at 0.75 times DC reference voltage（ μ A) Creepage distance (mm)
Motor D HY2.5WD-1.3/3.6 1.3 0.66 0.95 1.8 3.6 75 200 40 50
HY2.5WD-2.6/7.2 2.6 1.14 1.9 3.6 7.2
Return to List
