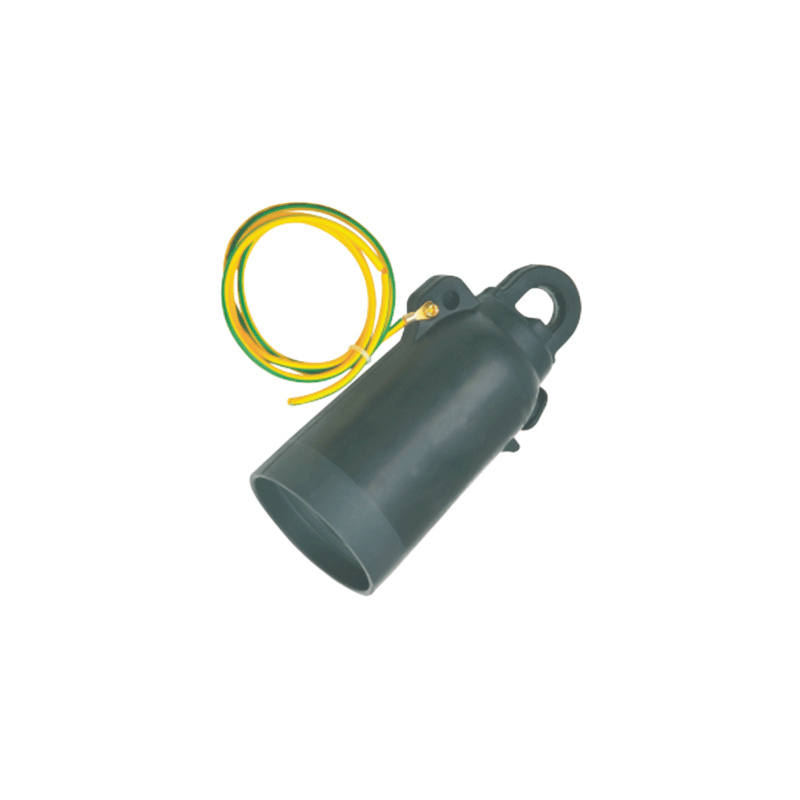

JYM-15/200 Insulated protective cap

15kV/24kV 200A Apparatus bushing is widely used in the high-voltage circuit of the pad-mounted, submersible transformer, switch gears, etc.A load break bushing insert threads into a universal bushing well to provide the same function as an integral load break
bushing. The bushing is used together with the cable accessories such as: bushing insert, Rotatable Feed thru Insert etc.

The Apparatus bushing is molded using high quality insulating material, when mated with comparably rated products, it provides a fully shielded insulating connection.

Category :
American cable connector JYM-15/200A insulation cap
Browse number : ...
Release time : 2023-11-30

Contact Us

Description

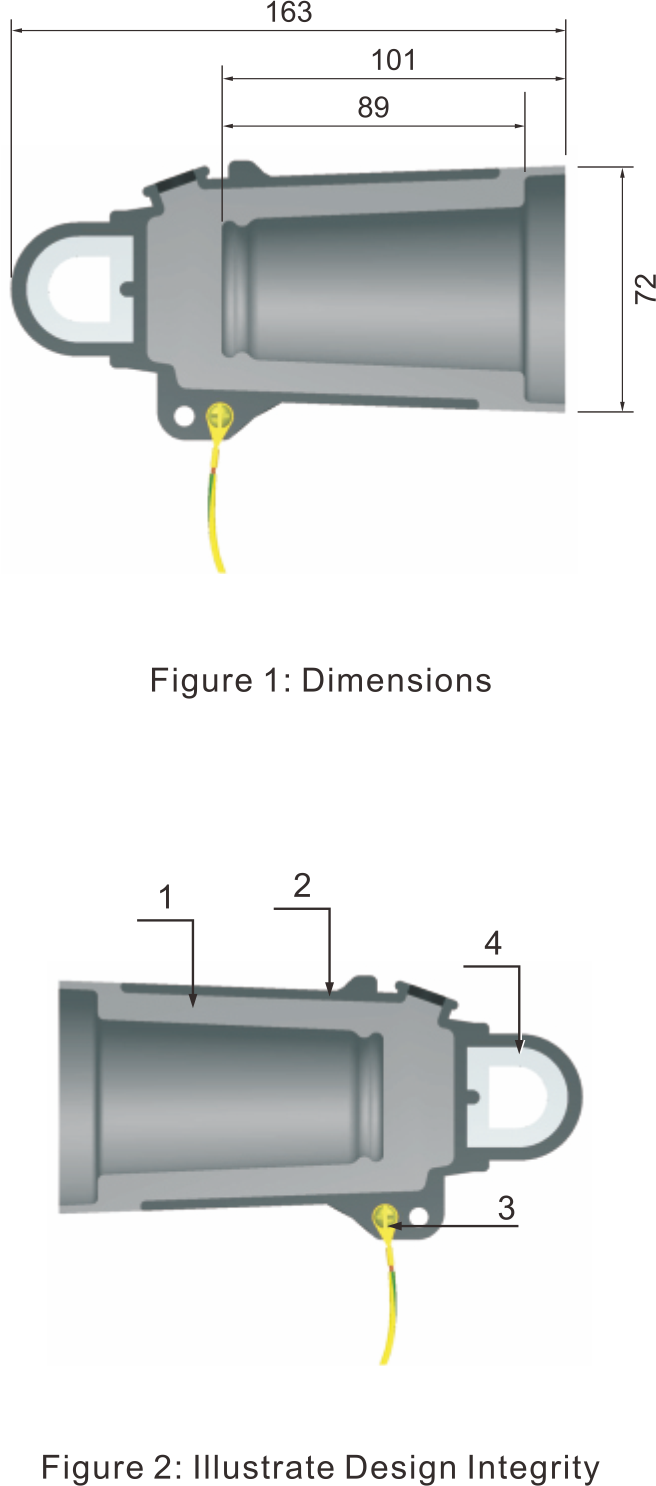

Dimension

Inference information

5.JYM 15 200A绝缘帽-1

Order information

Description	Reference No	Continuous operating voltage	Continous nominal current
Insulated protective cap	JYM-15/200	15kV	200A

Scope of delivery

1、Insulated protective cap
2、Clearing paper
3、Silicone lubricant
4、Installation instruction sheet
5、Quality certificate

Product structure

1、INSULATION: High quality, peroxide-cured EPDM rubber formulated, mixed and molded inhouse for consistent and reliable field performance.
2、SEMI-CONDUCTIVE SHIELD: High quality EPDM rubber provides prtective dead front shield that make sure they have grounding
3、GROUNDING EYE: Three tabs molded into a semi-conductive shield for the attachment of a ground wire to maintain dead front safety.
4、PULLING EYE: Stainless steel reinforced for positive shotgun stick switching operations.

5.JYM 15 200A绝缘帽-2
